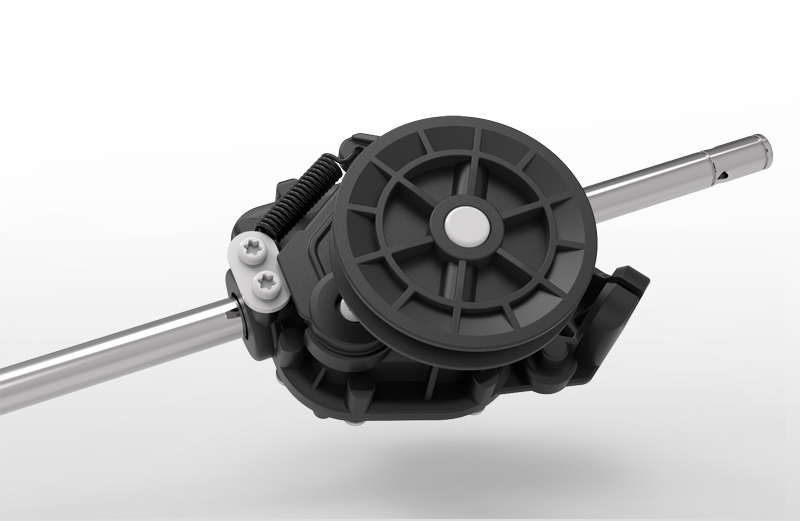

| Model# | HC5005 |
| Recommended Max. Weight* | ≤ 45kg |
| Clutch Type | Dog clutch |
| Number of Speeds | 1 |
| Shaft | Single |
| Wheel | Rear |
| Rotation Direction | Same to wheels |
| Installation Height | 42-50mm |
| Available Ratios | 1:5, 1:7, 1:9 |
| Housing Material | Composite |
| Shaft Fixing | Bearing or Shaft Sleeve |
| Shaft Diameter | ∅ 12.7mm/∅ 12mm |
| Shaft Length | Customized |
| Dimensions | 85x80x70mm |
| Weight | 0.8kg |
* Weight limitation for reference only. The final weight is up to your customized model.
